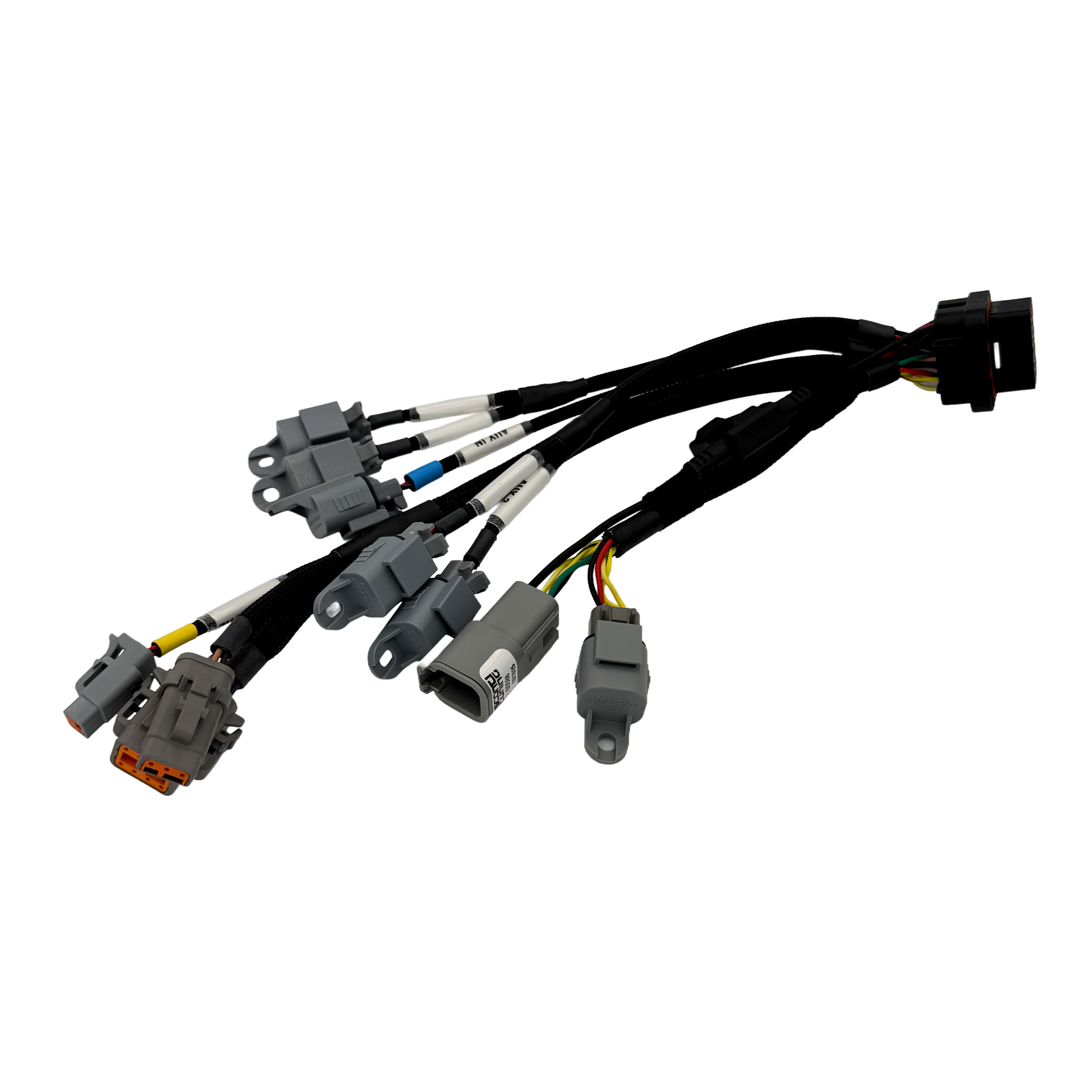

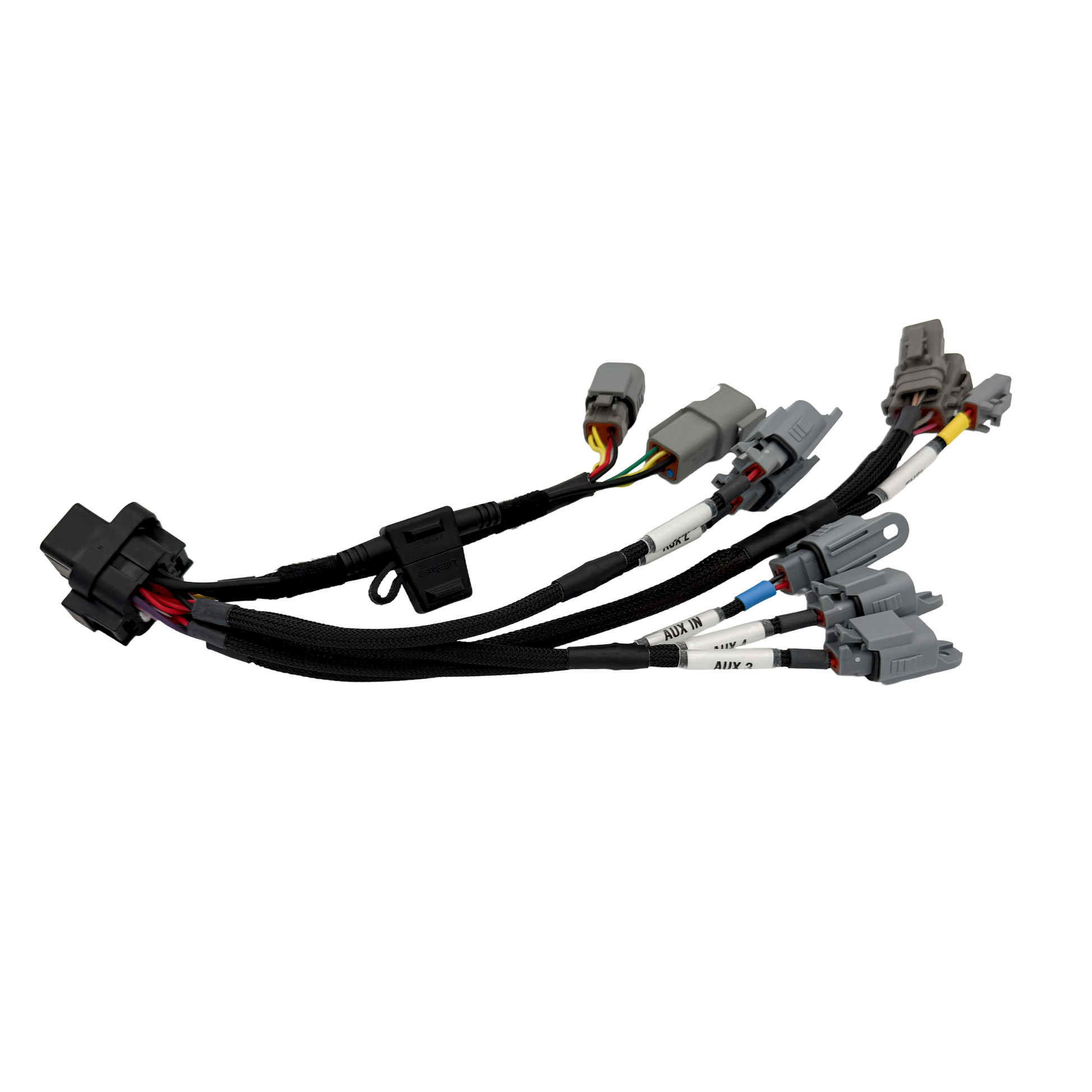

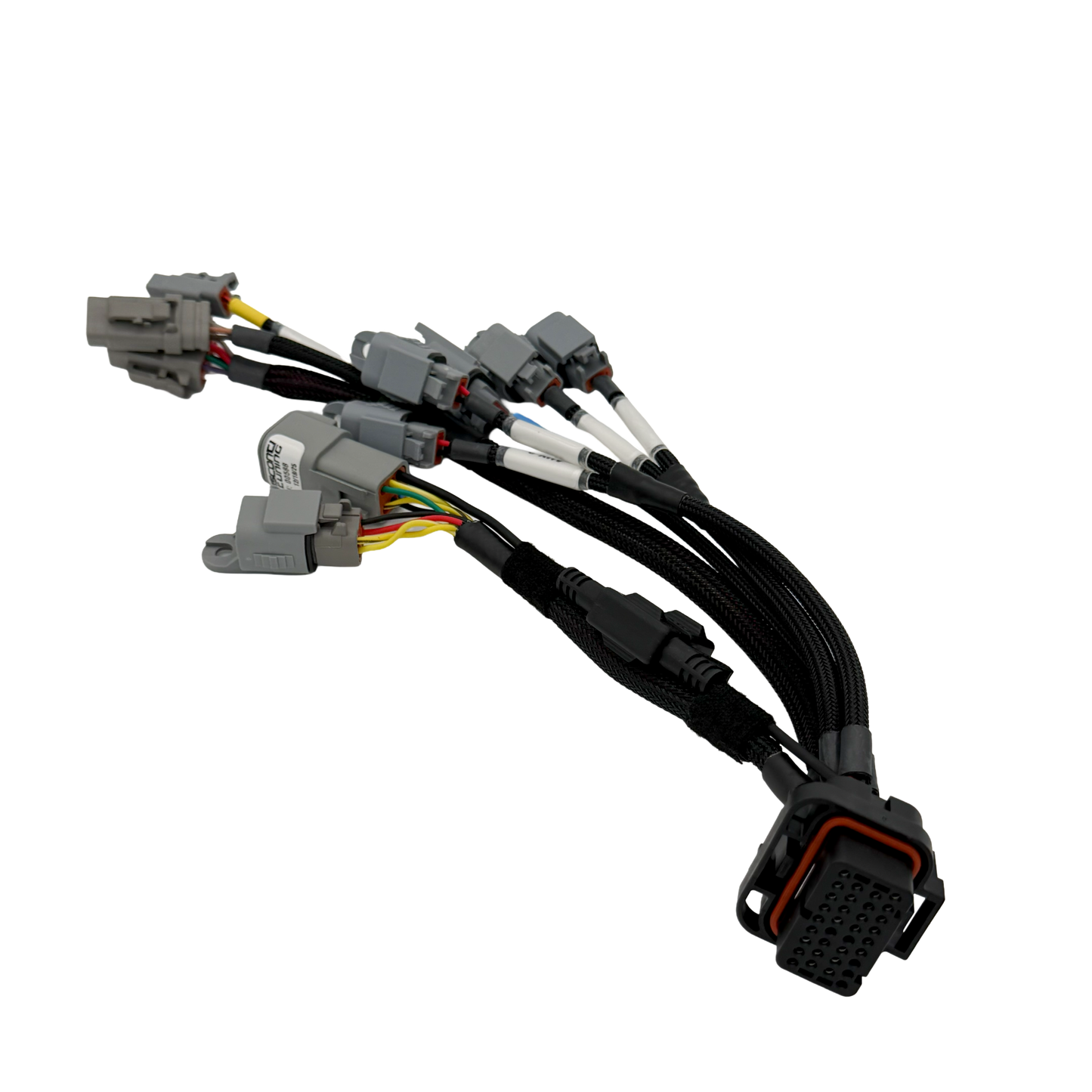

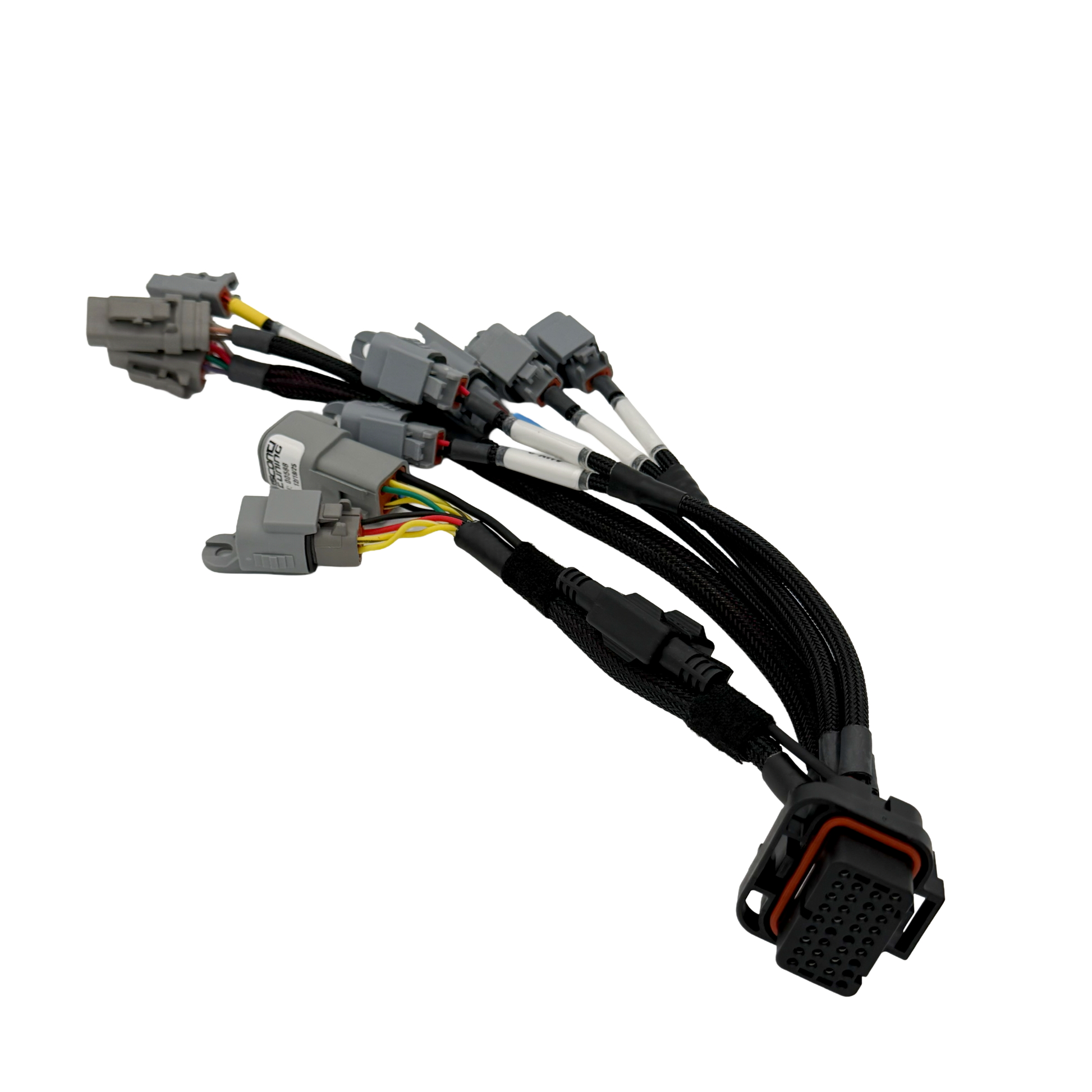

The Visconti S58/B58 Integration Harness is the primary harness from our ReFlex+ kit. It is designed to integrate the Flex Fuel Sub Harness, Injector Harness, and Engine Harness into the ReFlex+ controller.
It provides a clean and reliable connection point for all required I O expansion when running port injection, with no splicing or modification of factory wiring.
This version of the harness is designed for the ReFlex+ to be mounted in the engine bay rather than inside the vehicle like our original version. It is compatible with all current versions of our Injector Harness and Engine Harness. Early Flex Fuel Sub Harnesses will require a DTM connector update.
Connector Layout:
- 6 Pin DTM
Flex Fuel Sub Harness
Power, Ground, Ethanol, CAN H, CAN L - 2 Pin DTM
Fuel Pressure
Power, Signal Input - 2 Pin DTM
Coolant or Back Pressure
Power, Signal Input - 8 Pin DTM
Injector Harness - 3 Pin DTM
Engine Harness
Cam, Crank, Boost or Third Input (MHD+) - 2 Pin DTM
AUX 1
Power, PWM - 2 Pin DTM
AUX 2
Power, PWM - 2 Pin DTM
AUX 3
Power, PWM - 2 Pin DTM
AUX 4
Power, PWM
Please reach out with any questions before purchasing.
