OE Ultimate Under Supercharger Kit (Audi EA837 B8, C6, and 4L 3.0T Gen 1)

OE Ultimate Under Supercharger Kit (Audi EA837 B8, C6, and 4L 3.0T Gen 1)

$574.99 USD
$775.99 USD $574.99 USD
Sale Sold out

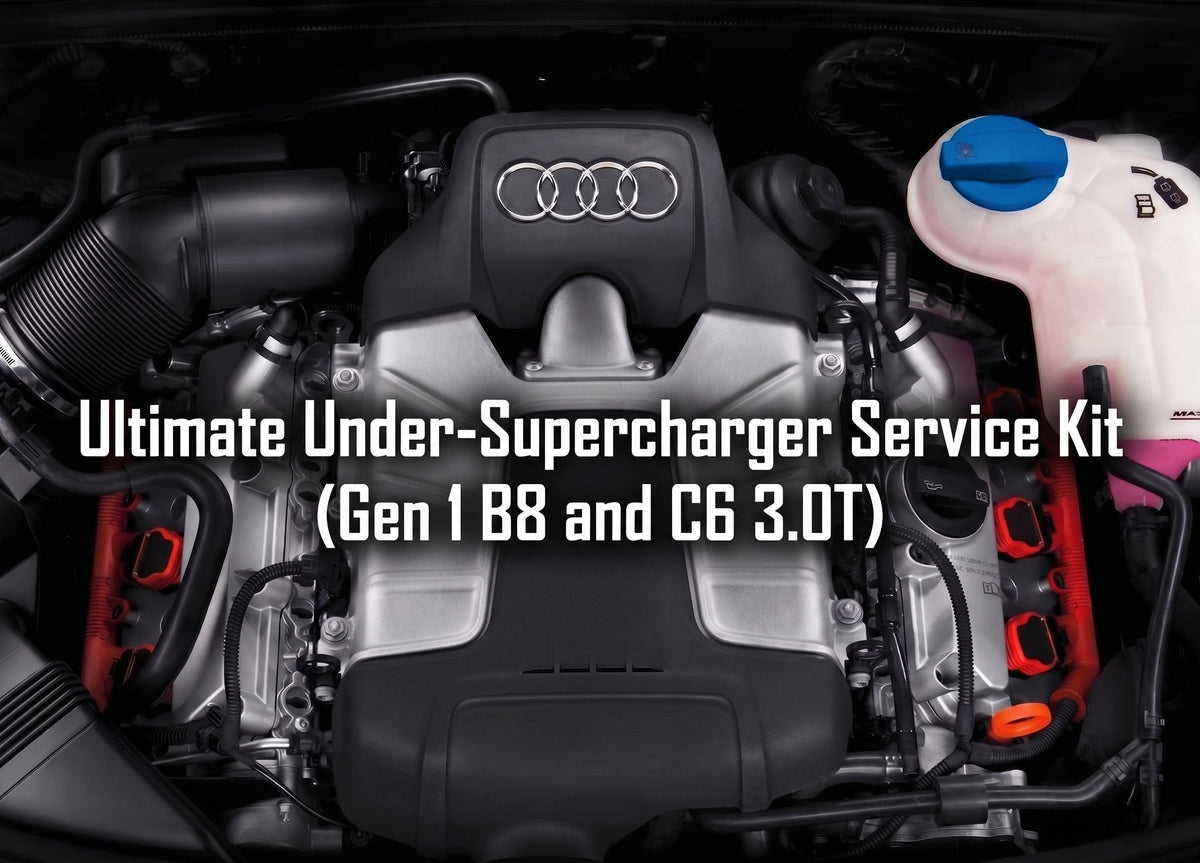

Vorsprung Autowerk Ultimate Under-Supercharger Service Kit (Gen 1 EA837 B8, C6, and 4L 3.0T)

Don’t pull the supercharger twice. Do it once, and do it right.

If you are removing the supercharger on your Gen 1 Audi 3.0T to replace a failing thermostat or PCV valve, replacing the rest of the critical "under-blower" components while you're in there isn't just recommended, it's mandatory.

The factory plastic cooling components are notorious failure points that leave drivers stranded and facing massive labor bills. The Vorsprung Autowerk Ultimate Under-Supercharger Service Kit bulletproofs the valley of your 3.0T. We've taken the guesswork out of this heavy-duty maintenance job by assembling the highest-quality OEM, OES, and upgraded metal components on the market. This is the most complete kit on the market!

Say goodbye to cracking plastic housings and leaking seals. This kit is designed for enthusiasts who demand peak reliability for their daily drivers or stage-tuned track weapons.

Kit Includes:

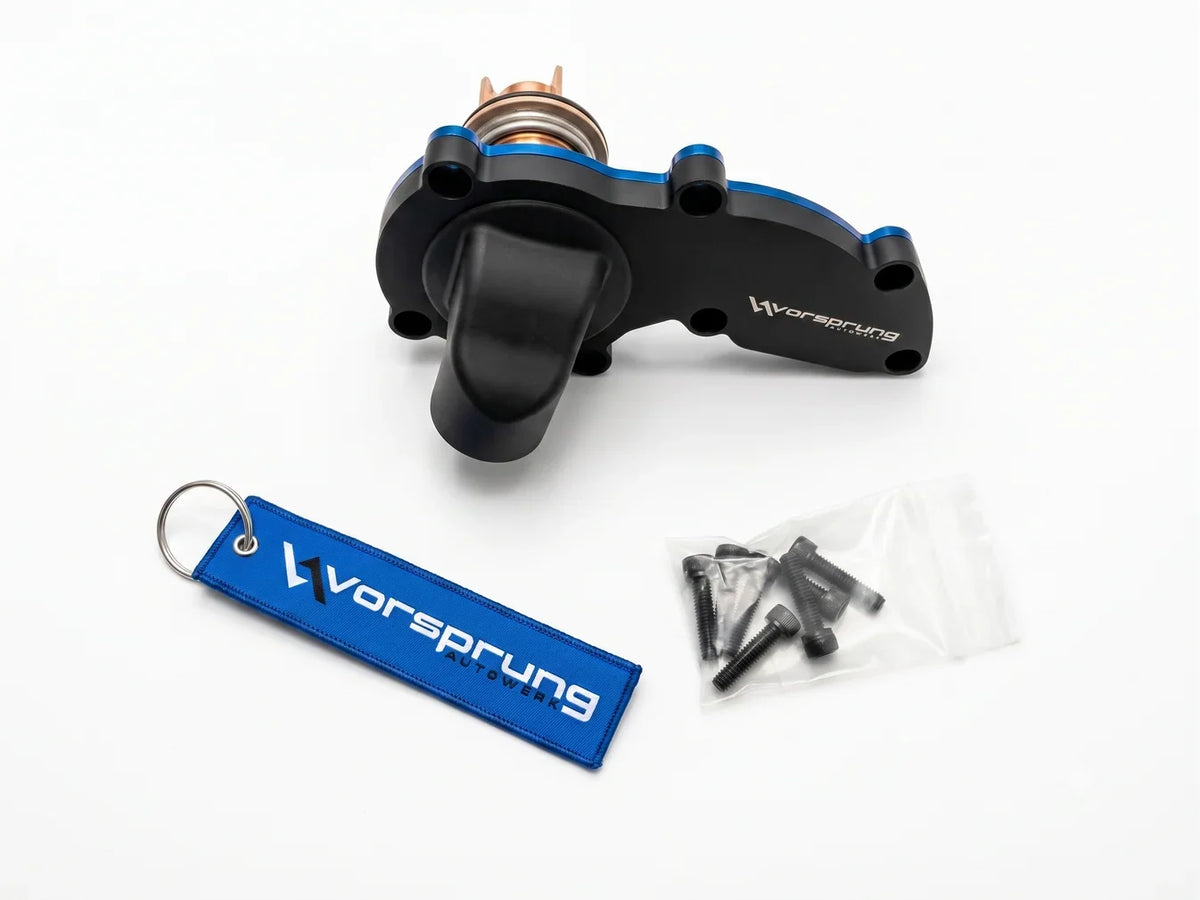

  • Vorsprung Thermostat Assembly - Billet aluminum upgrade (Replaces OEM 06E121111AL)

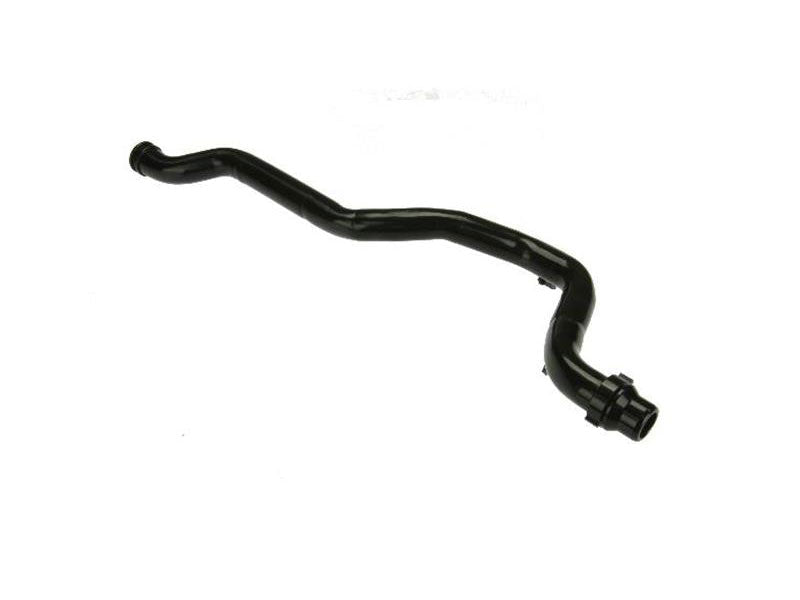

  • URO Parts Aluminum Heater Pipe - Eliminates plastic pipe (Replaces OEM 06E121065N)

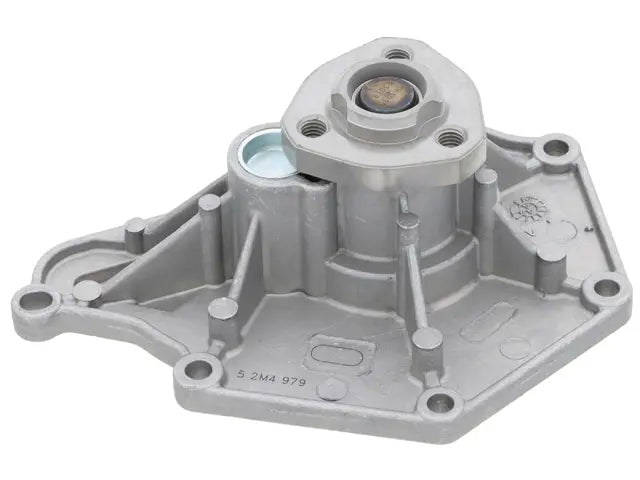

  • Graf Metal Water Pump - OEM quality replacement (Replaces OEM 06E121018A)

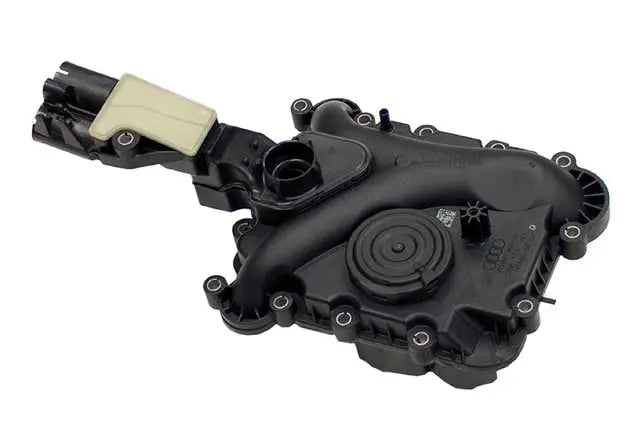

  • OEM Hengst PCV Valve - (06E103547AC)

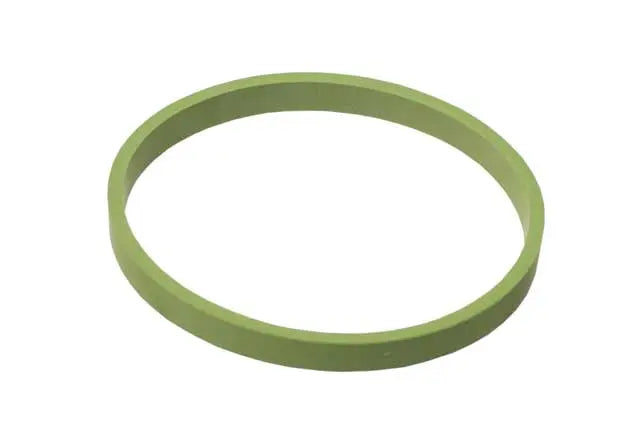

  • Elring Upper Intake Manifold Gaskets (x6) - (079129717D)

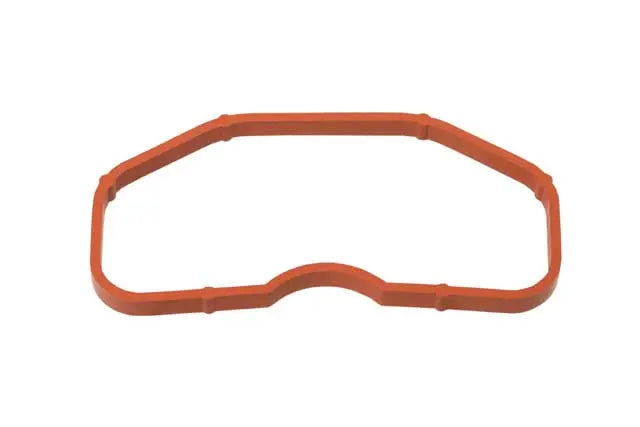

  • Elring Lower Intake Manifold Gaskets (x6) - (079129717B)

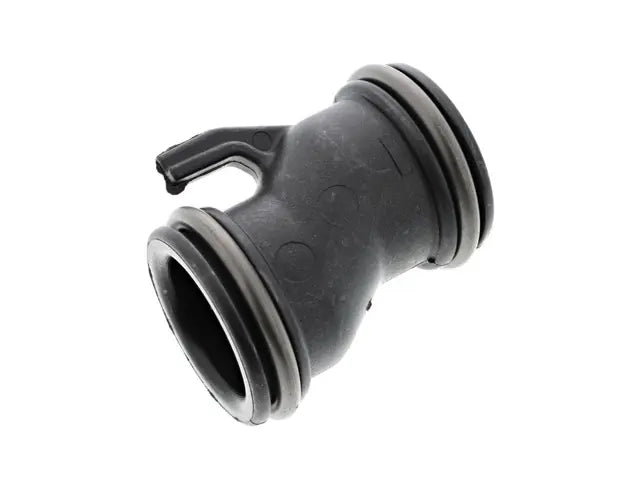

  • Genuine VW/Audi PCV to Supercharger Adapter Pipe - (06E103213)
  • Elring Klinger Fuel Injector Seal Kit (x6) - (06E998907E)
  • Audi Engine Crankcase Breather Hose - OEM (06E103207P)
  • Audi Breather Hose Clamp - (N10203601)

Vehicle Fitment

This kit is scoped to the earliest Gen 1 EA837 3.0T applications, per the table below.

Make Model Years Engine
Audi S4 2010–2012 3.0T V6
Audi S5 2010–2012 3.0T V6
Audi A6 2009–2011 3.0T V6
Audi Q7 2009–2014 3.0T V6

NOTE: If your Audi is a B8.5, C7, D4, or later 4L model (2012 and later, broader trim range), use the B8.5 Ultimate Under Supercharger Kit instead, it has different part numbers for the water pump and PCV valve. Did we miss something? Email us at help@vorsprungautowerk.com

Under Supercharger Kit FAQ

What's included in this Audi B8 under supercharger kit?
A billet aluminum thermostat assembly, URO Parts aluminum heater pipe, Graf metal water pump, OEM Hengst PCV valve, Elring upper and lower intake manifold gaskets, the PCV-to-supercharger adapter pipe, an Elring injector seal kit, and the breather hose and clamp hardware. Full part numbers are listed above.

Is this the right kit for my early 3.0T, or do I need the B8.5 kit?
This kit is scoped to the earliest Gen 1 EA837 3.0T applications: 2010-2012 S4, 2010-2012 S5, 2009-2012 A6, and 2009-2014 Q7. If your Audi is a B8.5, C7, D4, or 4L model (2012 and later, broader trim range), use the B8.5 Ultimate Under Supercharger Kit instead, it has different part numbers for the water pump and PCV valve.

Do I need to replace every part in the kit, or just the one that failed?
Once the supercharger is off the car, the labor to remove and reinstall it is the expensive part, not the parts themselves. Replacing the whole valley now means you won't be paying for that labor twice.

Are these OEM parts or aftermarket?
Both. This kit mixes genuine OEM hardware with trusted OE-supplier brands (Graf, Hengst, Elring, URO) and a Vorsprung-engineered billet aluminum thermostat housing in place of the factory plastic piece that tends to crack. From time to time we may need to substitute gaskets for another OE equivalent due to supplier shortages , but we will never substitute hard parts.

A Word on Why This Kit Doesn't Cost What You'd Expect

A full under-supercharger kit with this much parts content should, on paper, cost more than it does. The reason it doesn't isn't that we cut something out, it's that we didn't mark up every single line item 50-100% the way a lot of bundled kits do. Ten parts at a 75% markup each adds up fast, and none of that extra margin makes the water pump spin any better.

We priced this kit off what the components actually cost to source and assemble, not off what the market would tolerate charging for convenience. Every OEM and OE-supplier part in this kit is the exact same part number you'd get anywhere else; we just didn't stack a markup on top of a markup ten times over.

  • Real Part Numbers, Real Sources: Genuine OEM hardware and trusted OE-supplier brands, not unbranded substitutes.
  • One Reasonable Markup, Not Ten: We price the kit as a kit, not as several separately-inflated line items bundled together.
  • No Convenience Tax: You're paying for the parts and the R&R this kit saves you, not for someone else's margin stack.

Bottom line: a lower price on a complete kit isn't a sign that something's missing, it's a sign that nobody padded the invoice on the way to your cart.

Why Buy From Us?

  • ✅
    Enthusiast Designed & Tested: Developed by people who actually drive and modify these cars.
  • ✅
    Tested on Our Own Cars: If we wouldn't run it ourselves, we don't sell it.
  • ✅
    Continuous R&D: We continually develop and improve our products instead of relying on generic catalog parts.
  • ✅
    Supporting Audi Platform Development: Your purchase helps fund continued development of new parts for these chassis.
  • ✅
    Real Enthusiast Support: Get help from people who understand the platform, not ticket bots.
  • ✅
    Small Team, Big Passion: Every order directly supports continued product development and innovation.
  • ✅
    Performance Without the Marketing Fluff: Purpose-built parts designed to perform.

Complete Your Build

Already in the valley? Pair your kit with:

Drive the difference. Drive Vorsprung.
