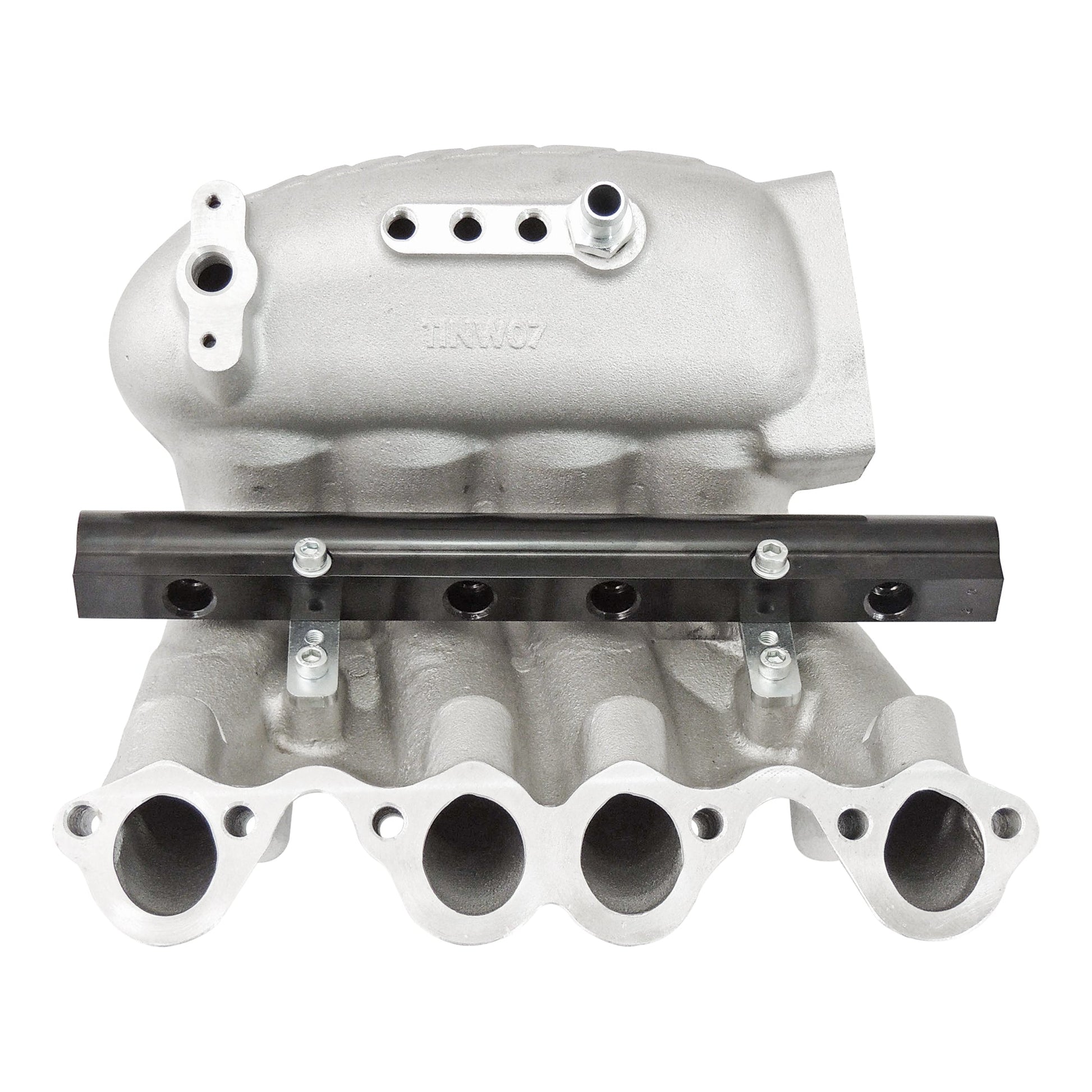

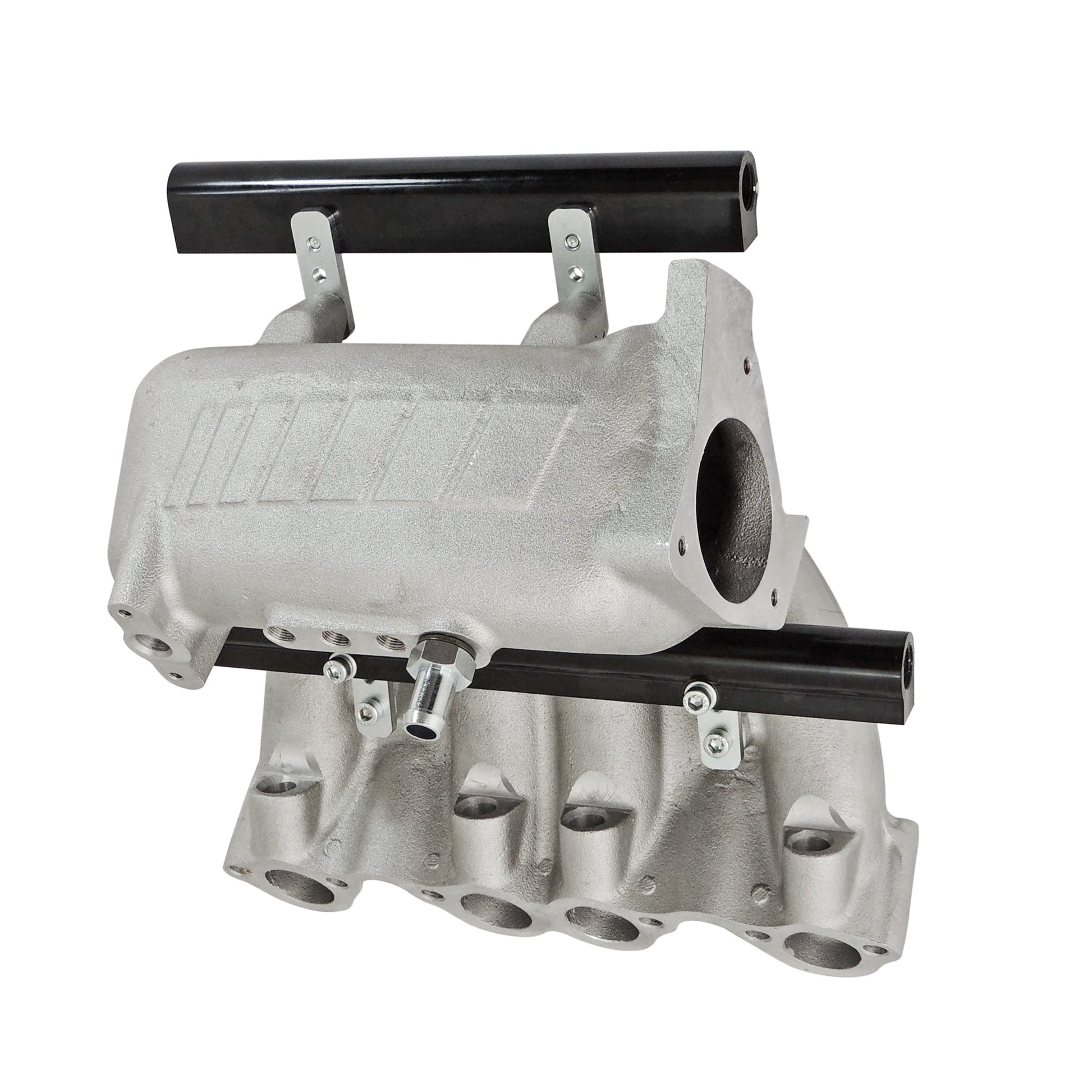

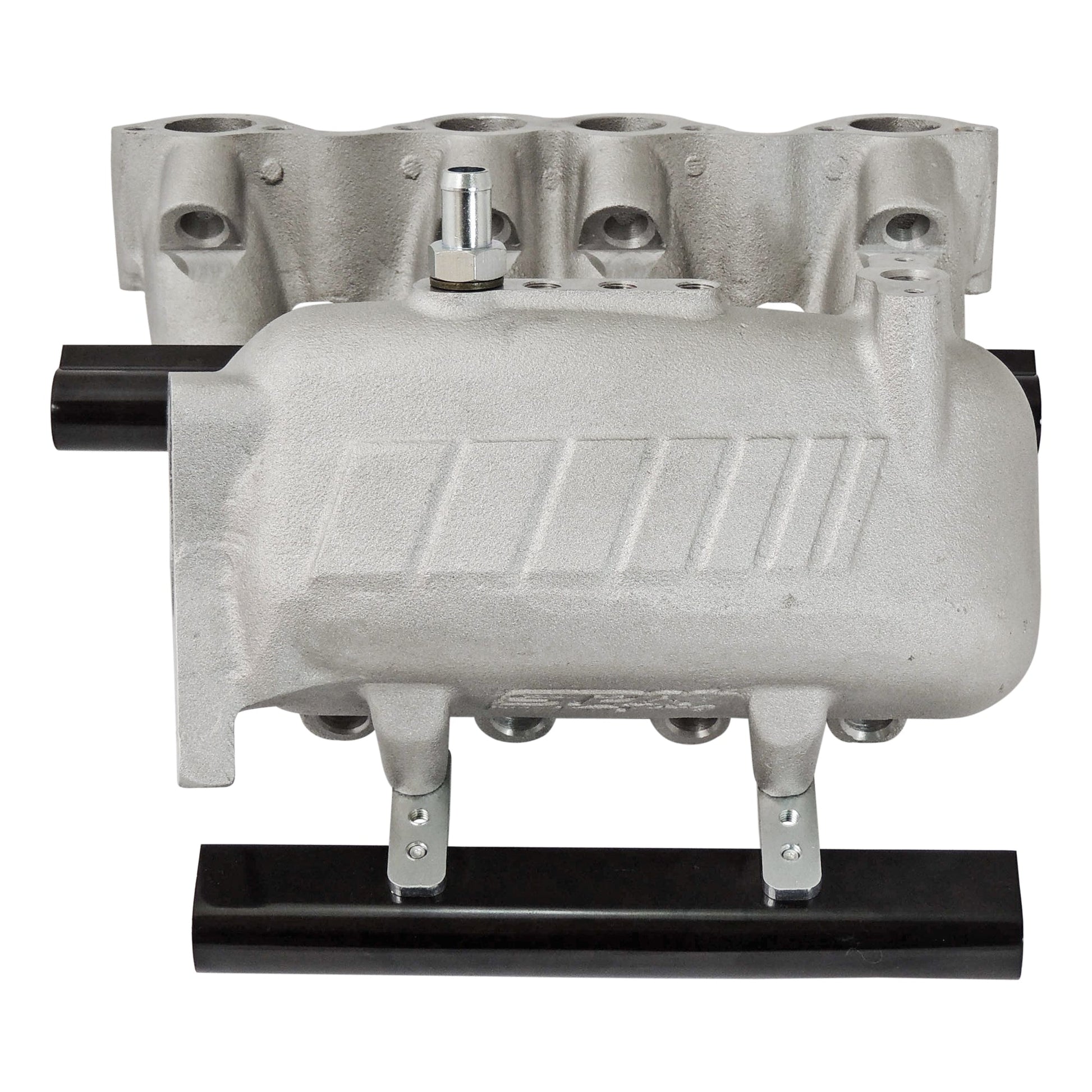

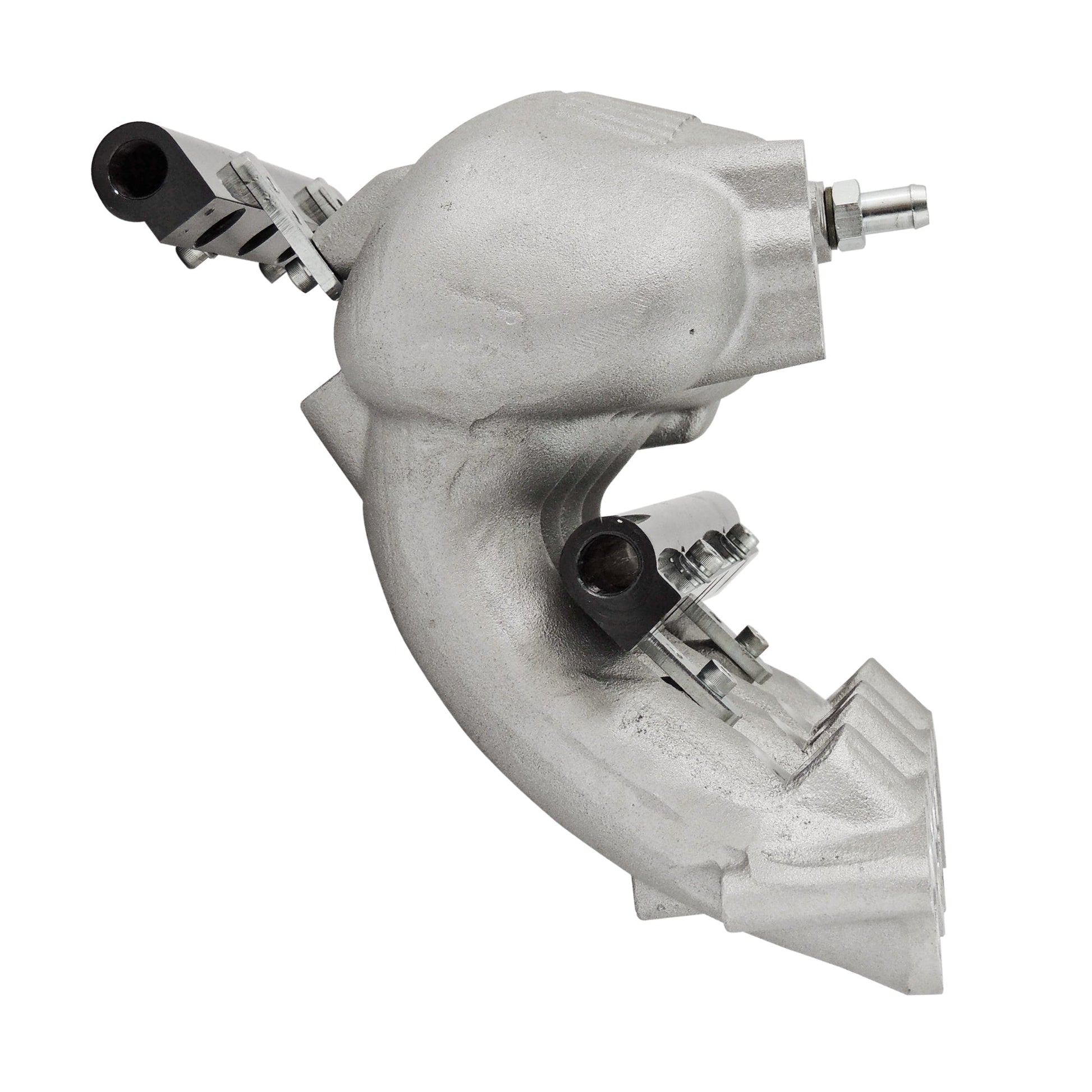

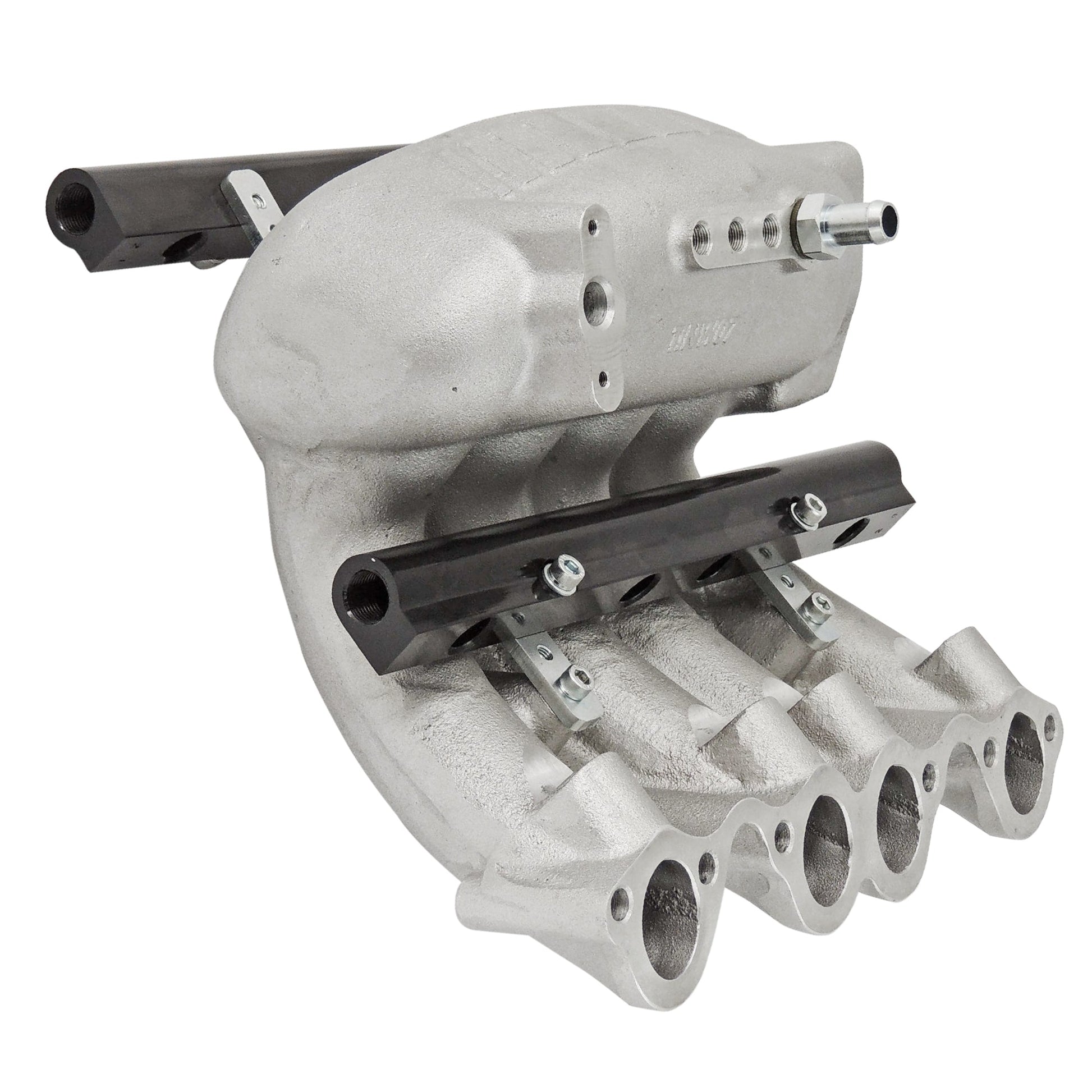

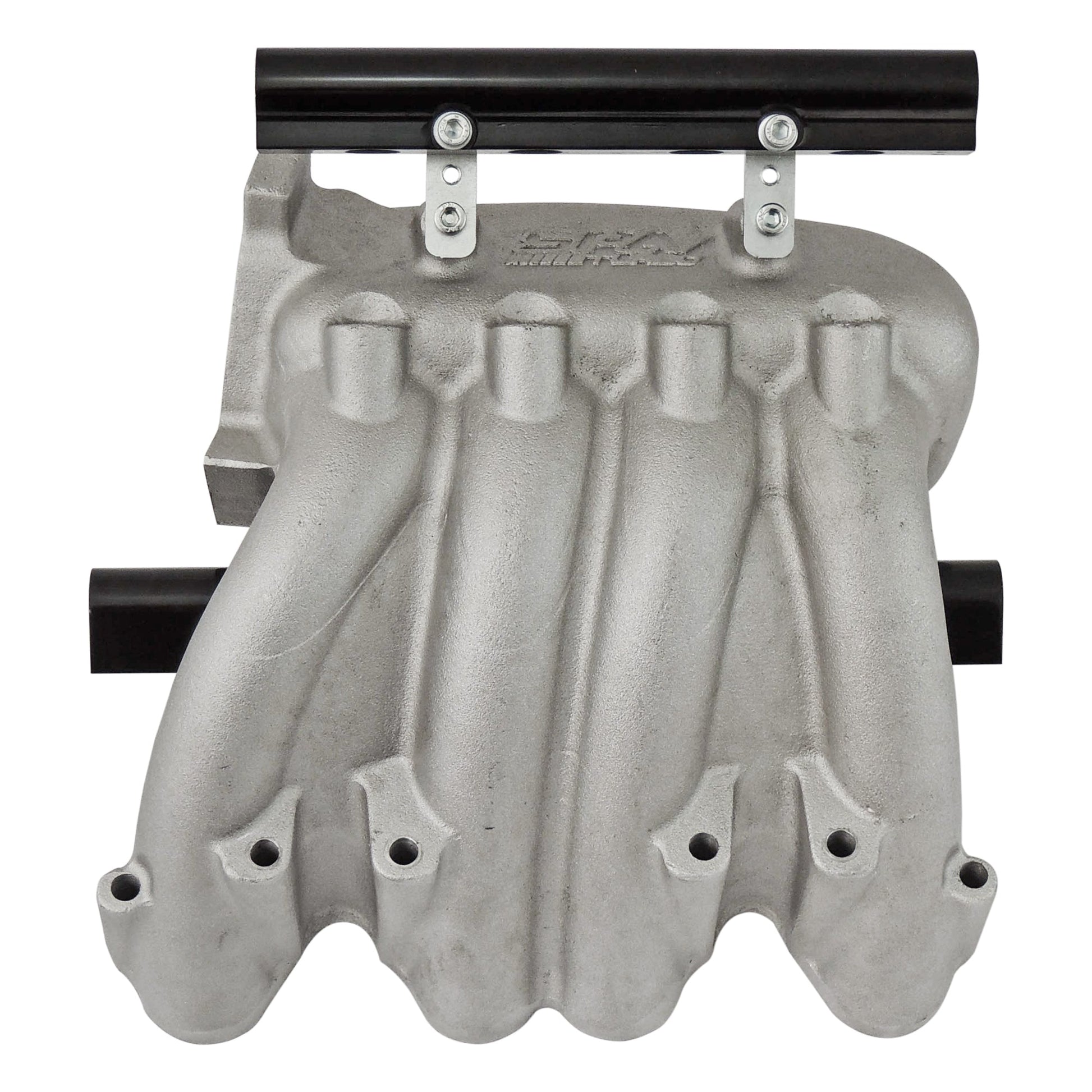

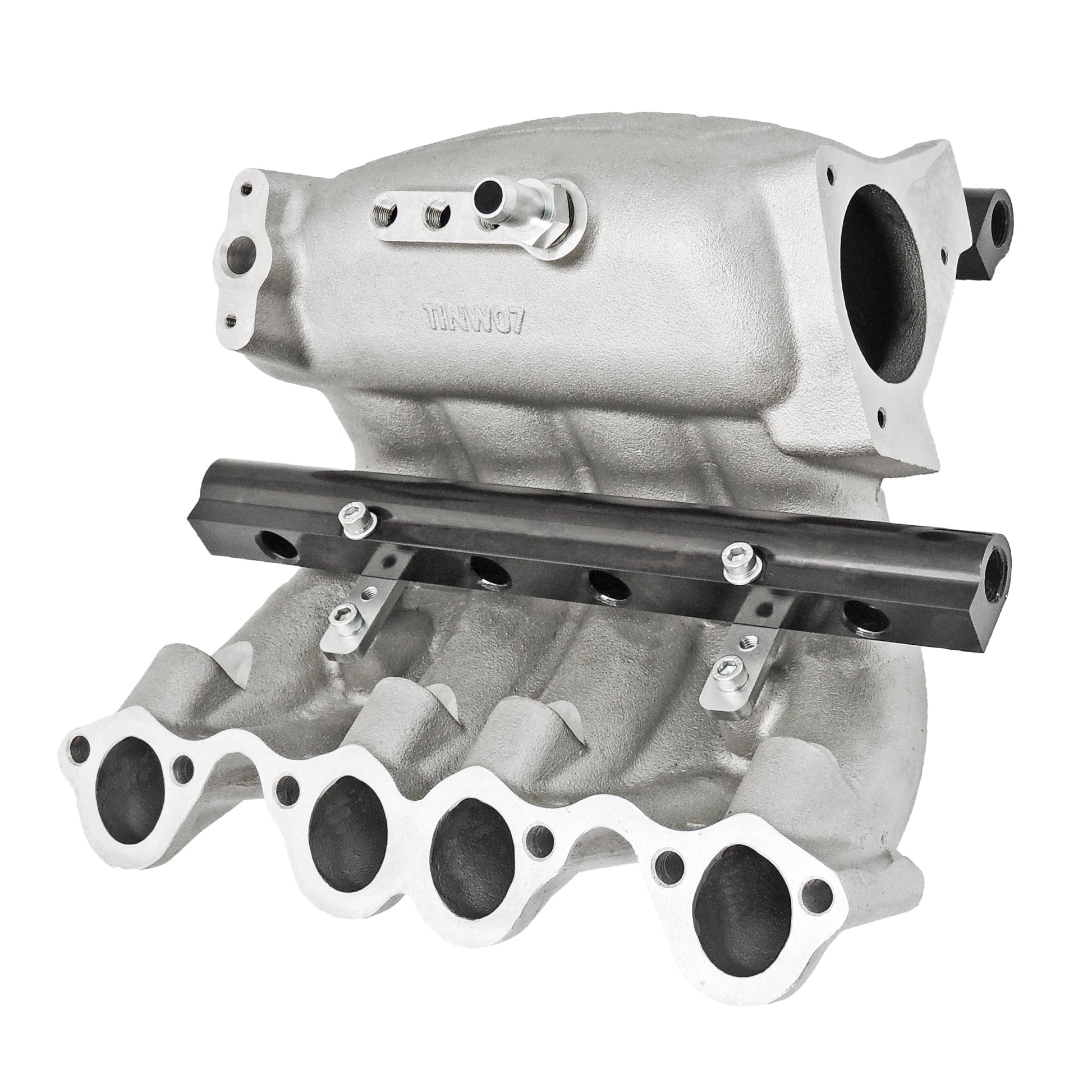

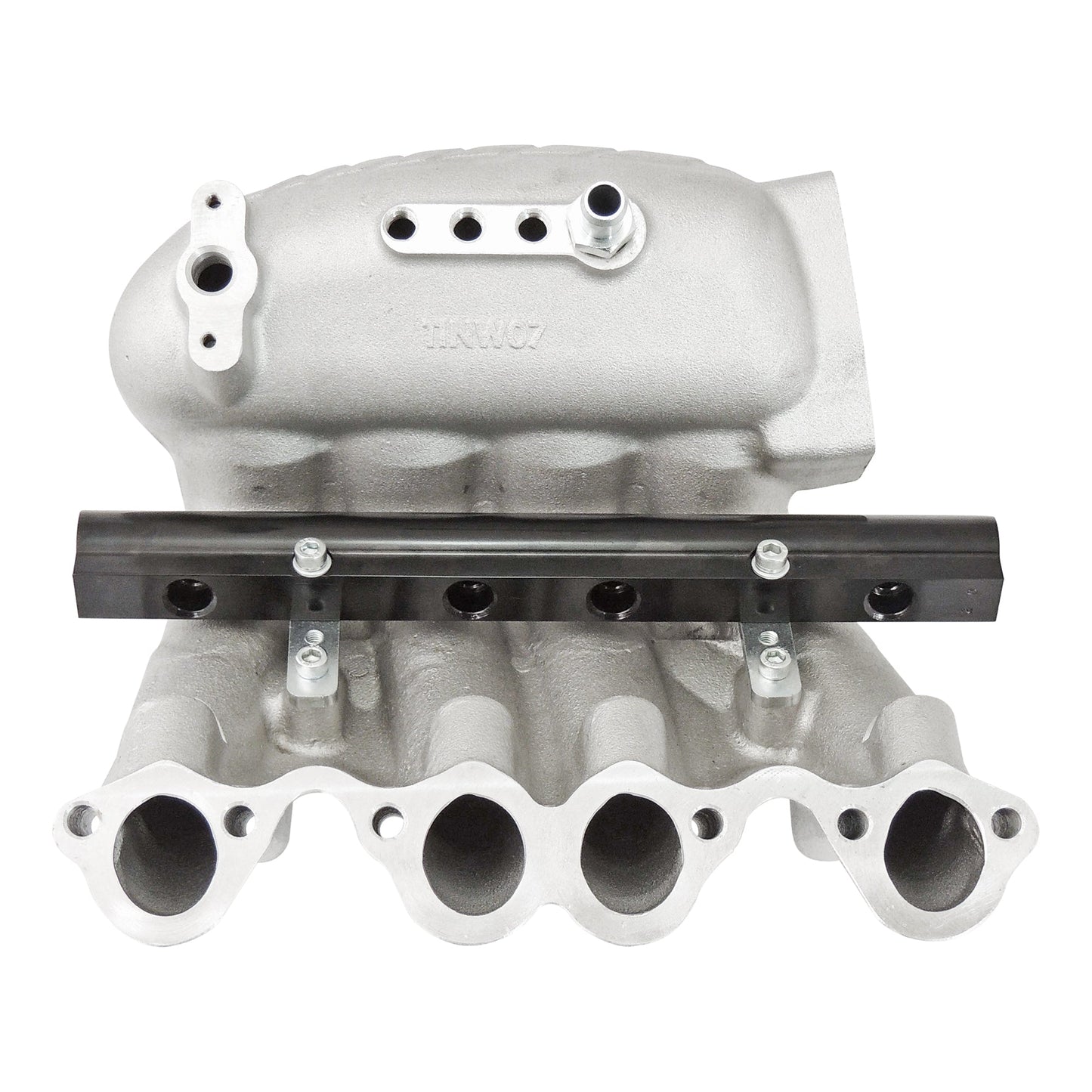

INTAKE MANIFOLD VW 8V LONGITUDINAL - 8 INJECTORS

• Number of injectors: 8

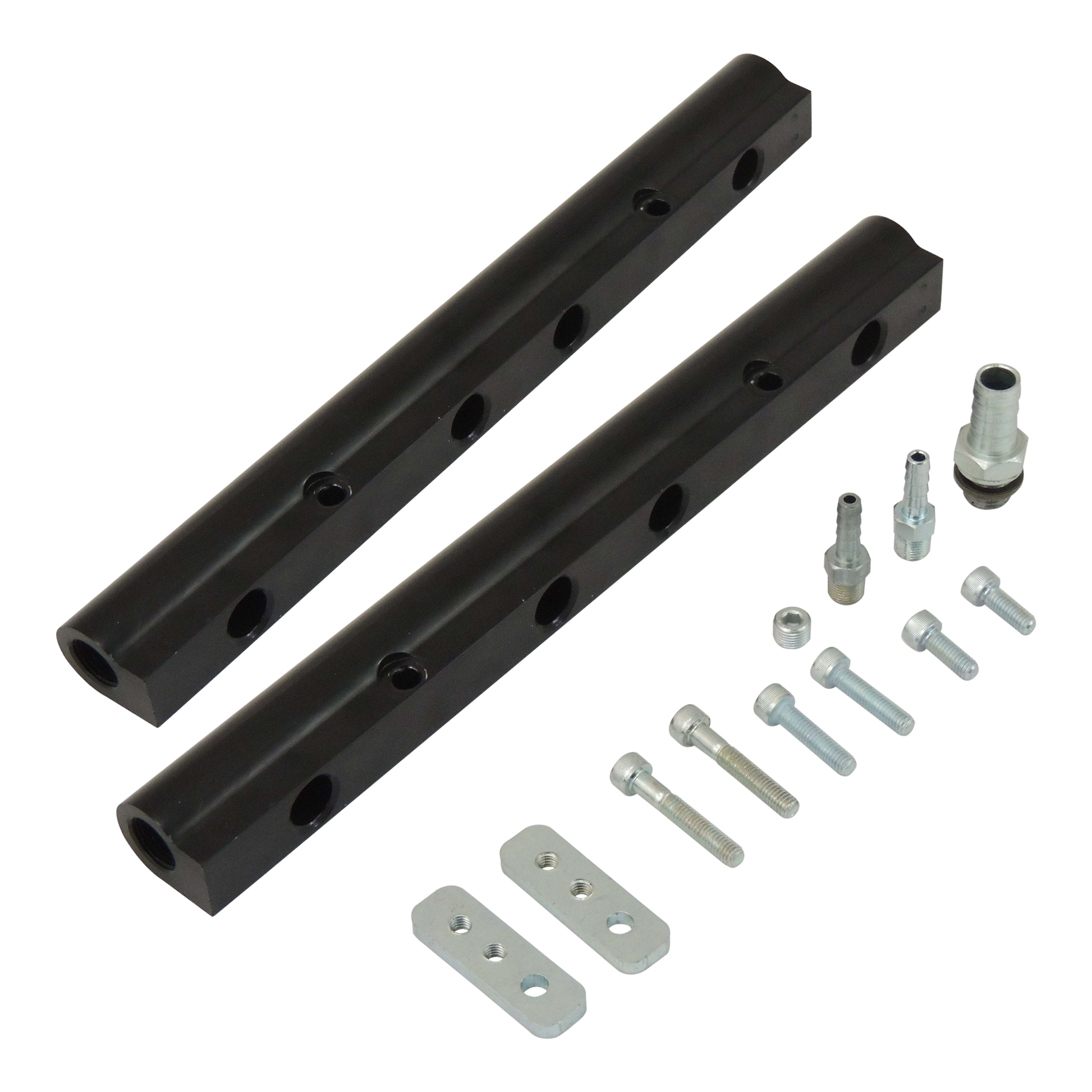

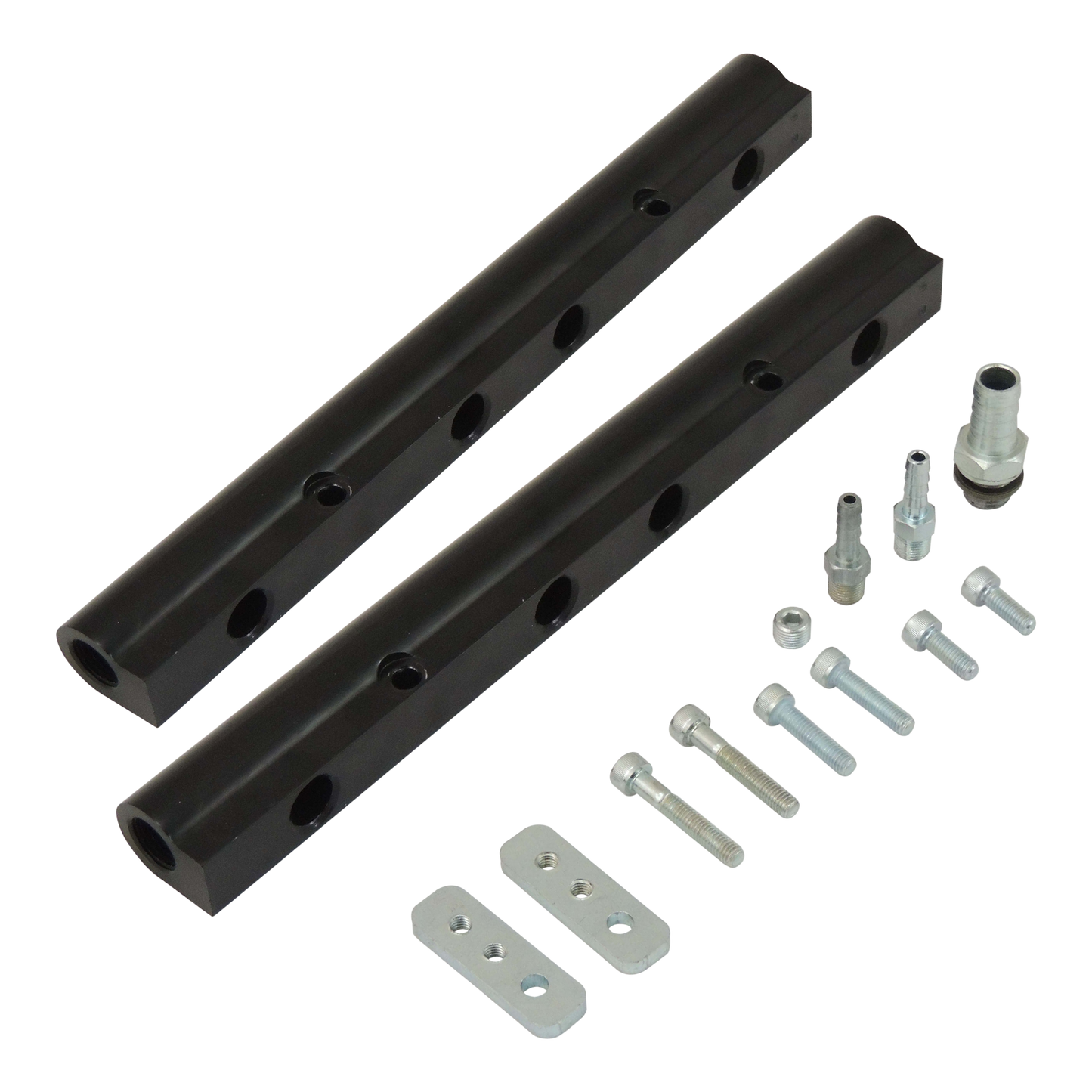

• Fuel rail: Anodized billet aluminum (black)
• Fuel rail connections: 3/8'' NPT
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

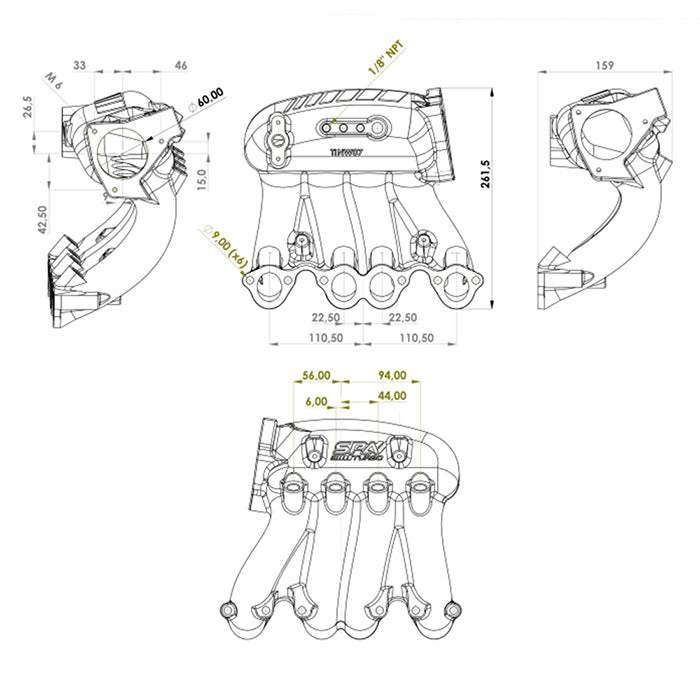

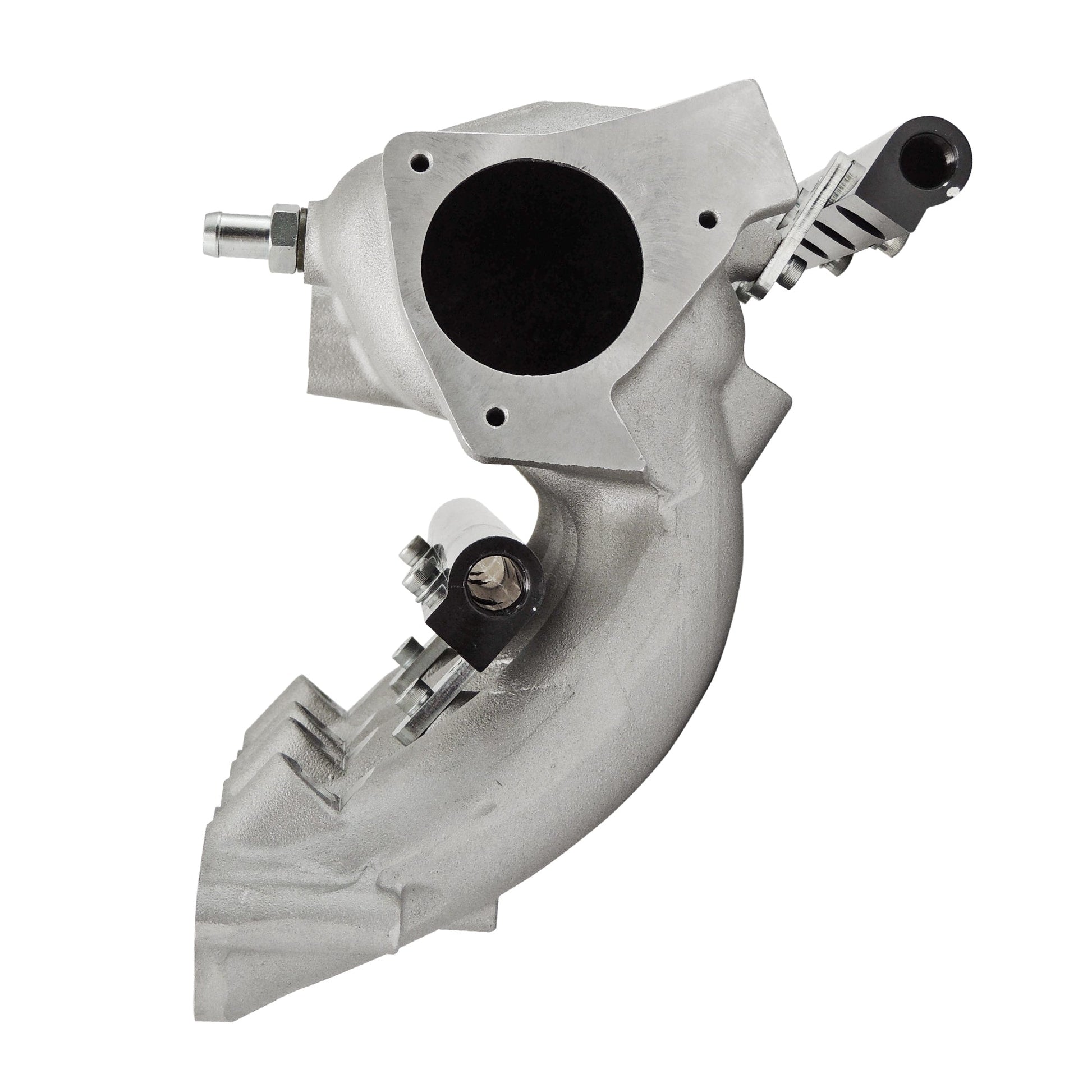

• Throttle body: VW MI (part number 026133064B) Check technical drawing.
• TBI position: rear
• Max working capacity: 10bar (145psi)

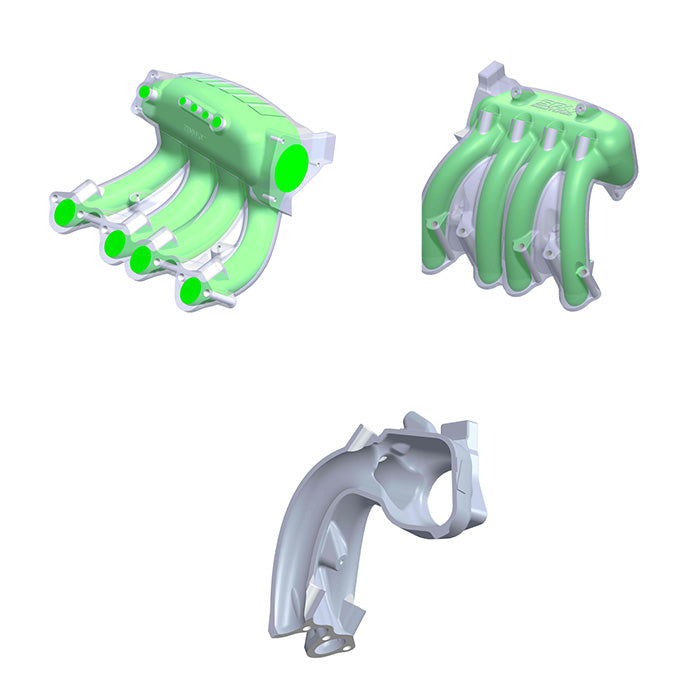

• Internal volume: 2.32L
• Material: Cast aluminum
• Application: VW 8V engine (reverse flow cylinder head)

ATTENTION: changes may be required to install this intake manifold.
