Fits ALL 4.6 / 5.4 For Ford Modular Blocks
(For Mustang, Crown Vic, F150, F250, Lincoln Navigator etc)
Uses Fram HP 4 or HP 8 oil filter or equivalent.

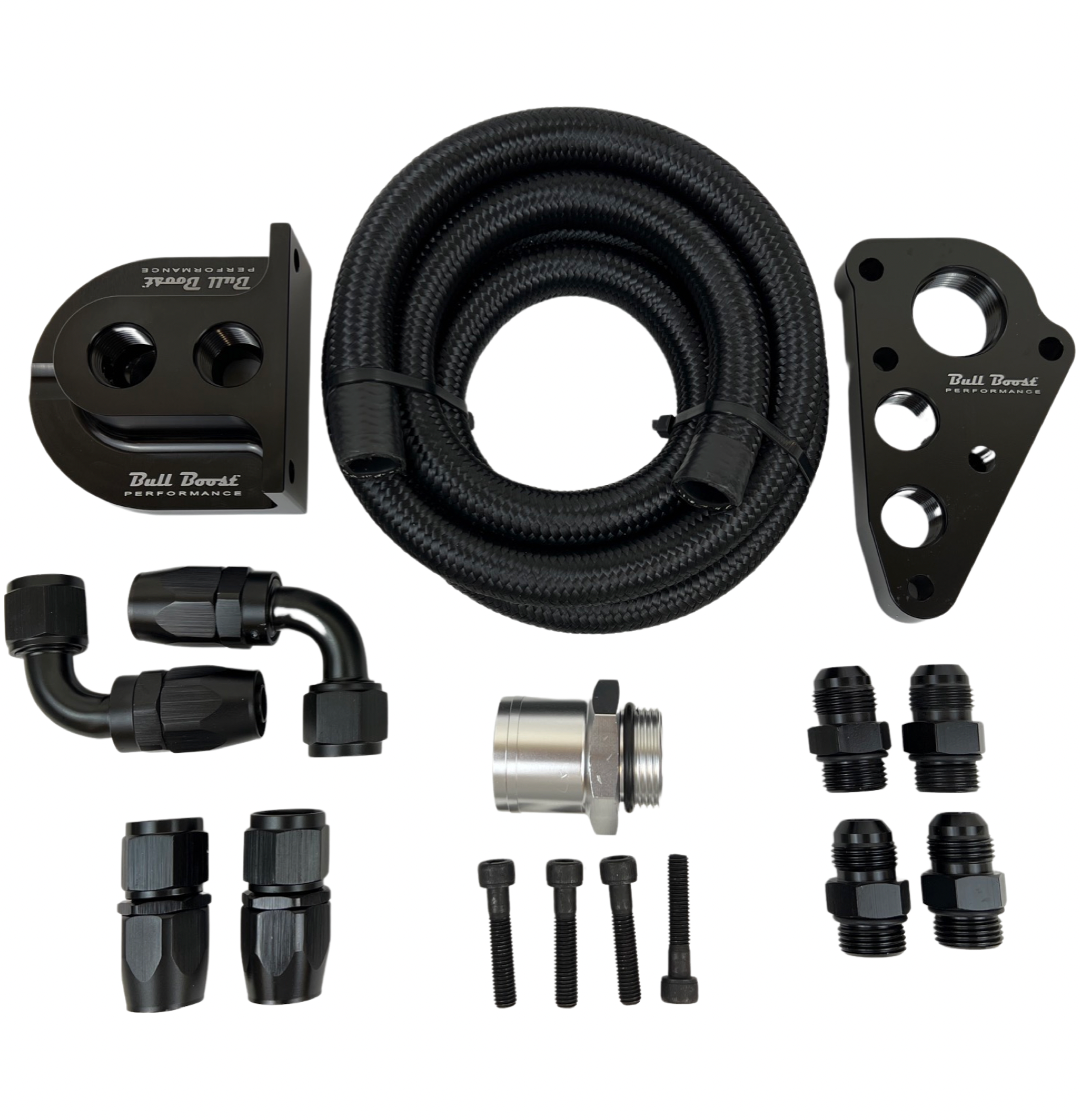

INCLUDES:

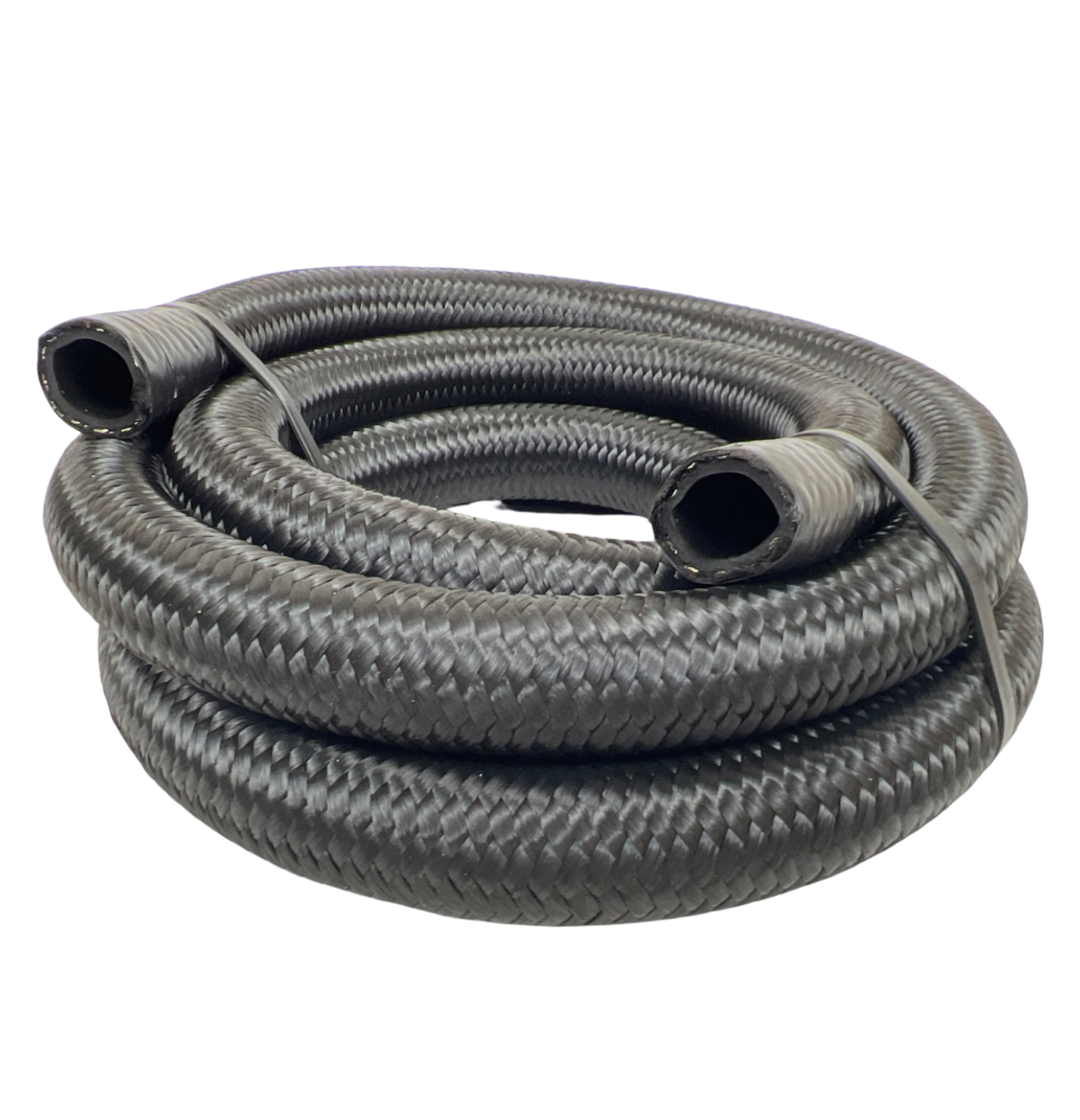

* -10AN Fittings with Braided Nylon reinforced hose

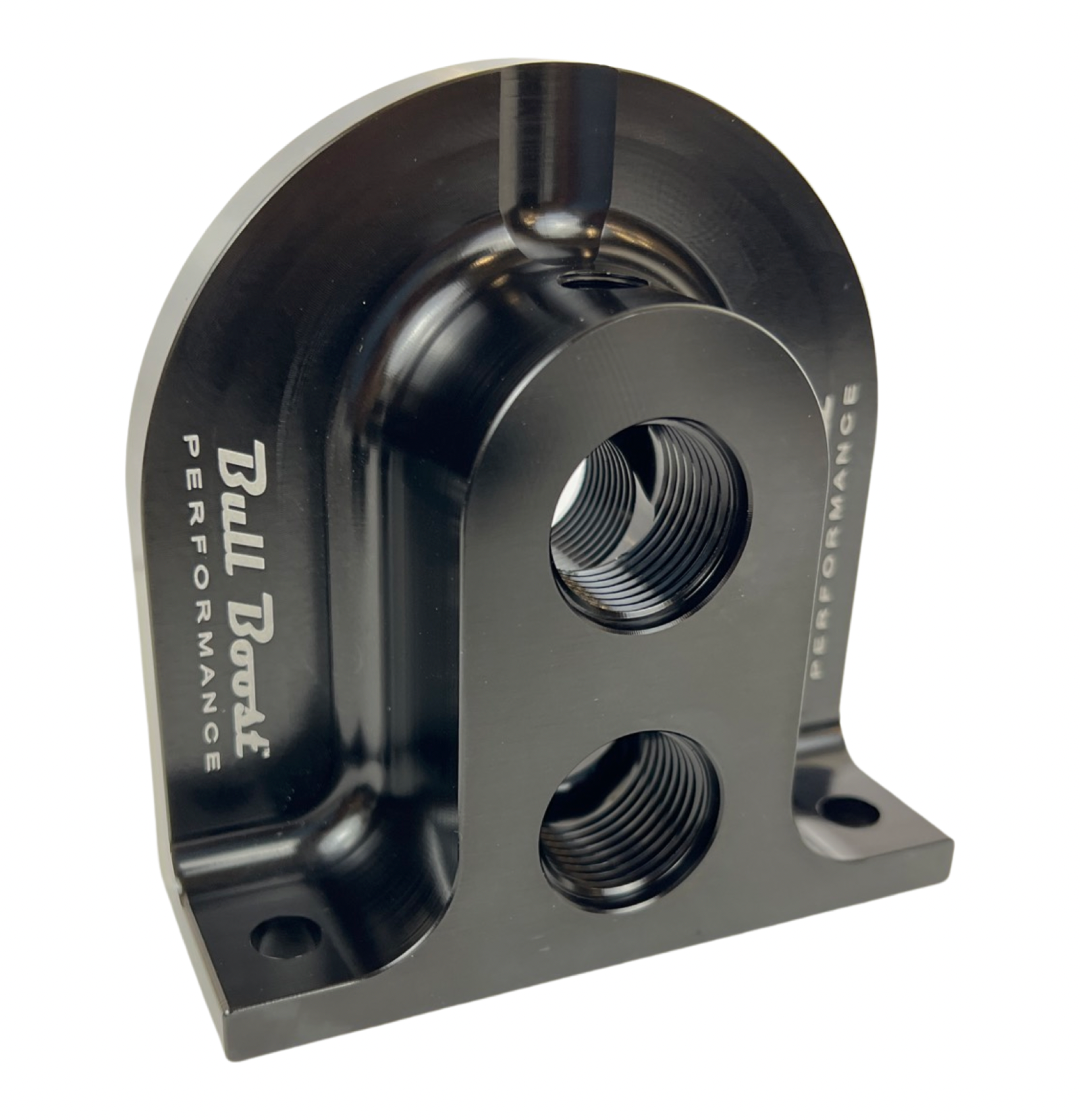

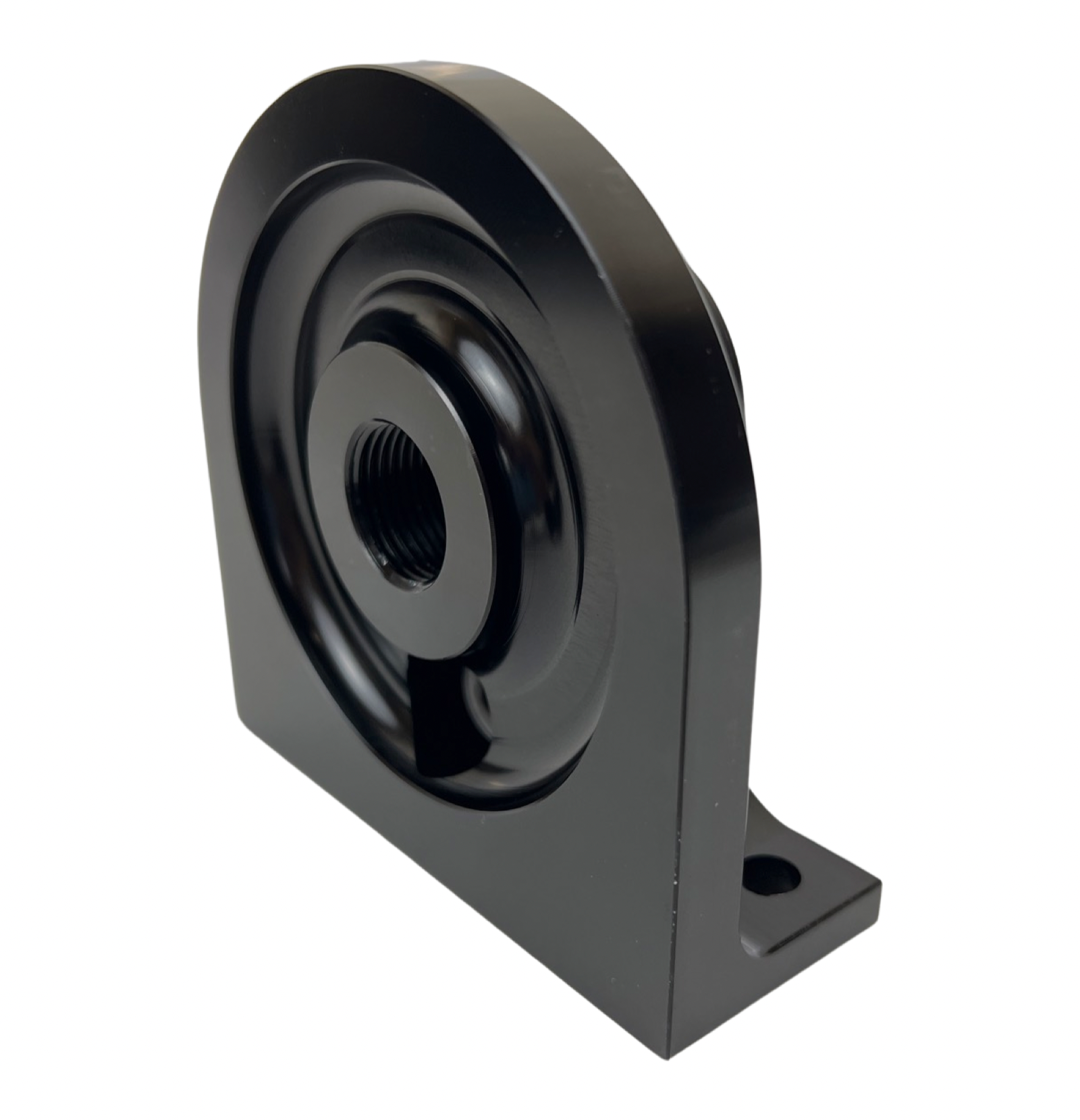

* Oil Filter Mounting Bracket (has 1/8npt Oil Pressure/feed port)

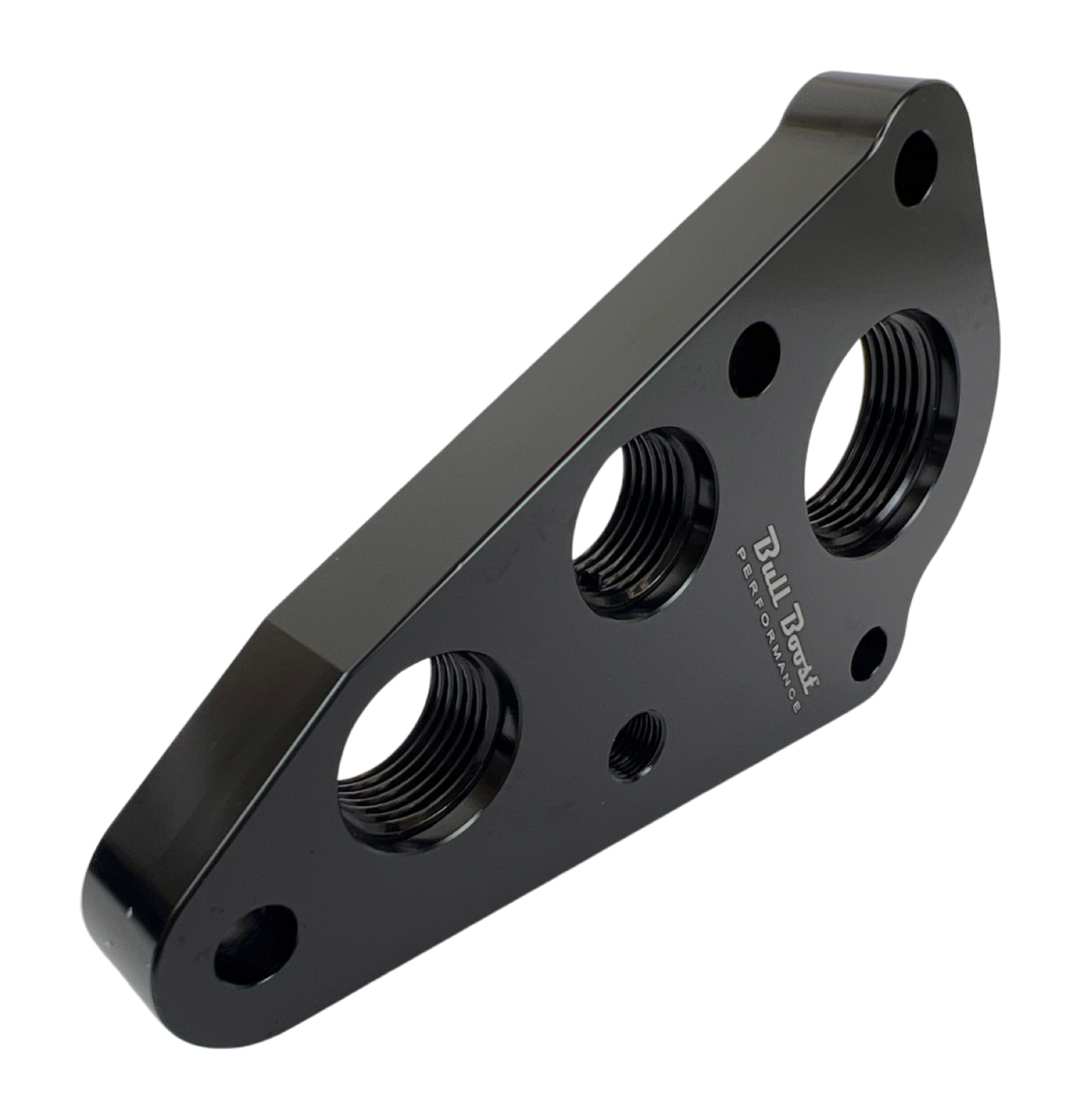

* Block adapter (has 1/8npt pressure port for oil feed or pressure guage).
INSTRUCTIONS / CONNECTIONS:
Filter can be mounted sideways or vertically in any location that allow the hoses to fit.
Connections MUST be OUT to IN / IN to OUT !!!!!!!!
NEVER connect in to in or out to out as this will result in low or zero oil pressure and cause engine damage!!!
Works With the following Oil filters:
Mobil 1 M1-303A
WIX Racing 51060R
K&N HP2002
Fram HP4 or HP8
Pennzoil PZ-45 / P412
.....or equivalents
